HLS Player

The HMSHLSPlayer is an HLS player offered by 100ms that can be used to play HLS streams. The player takes a URL to play the stream. It also provides the ability to send analytics events related to the HLS playback to the 100ms dashboard.

How to add HLS Player to your application

You can add the HMSHLSPlayer just like some other widget. It has three parameters:

• hlsUrl: m3u8 HLS Stream URL, this is an optional field if not passed SDK gets this from onJoin or onRoomUpdate callback

• isHLSStatsRequired: If HLS stats are required set this to true. Default is false

• showPlayerControls: To show the default player UI set this to true. Default is false

Let's check how you can Add HMSHLSPlayer to your widget tree:

///This returns the basic HMSHLSPlayer with stats and player controls disabled.
Widget HLSPlayer(){
    return HMSHLSPlayer();
}

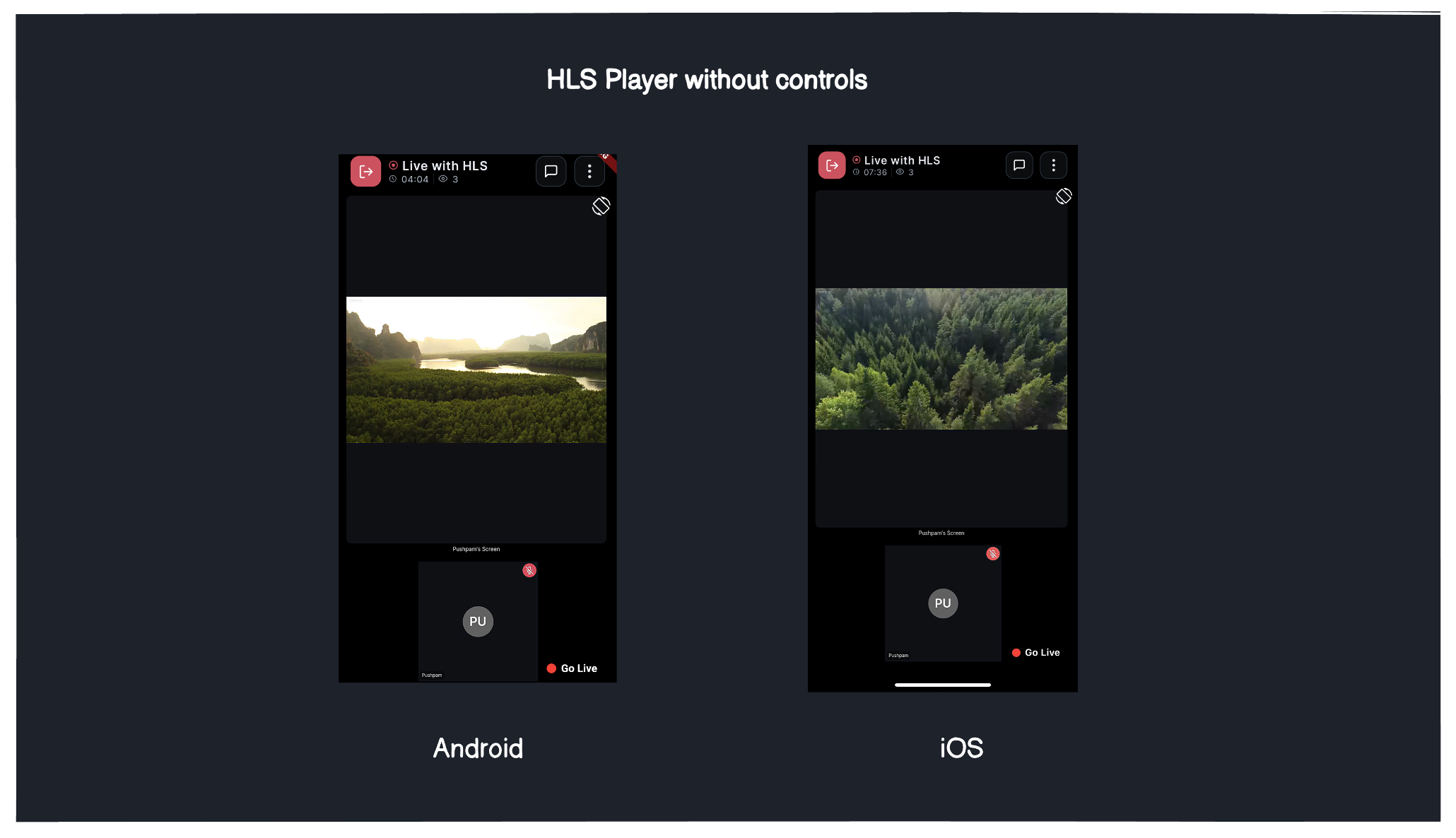

This is how the HLS Player will look like this:

To get a player with default OS player controls and stats enabled:

Widget HLSPlayer(){
    return HMSHLSPlayer(
        showPlayerControls: true
    );
}

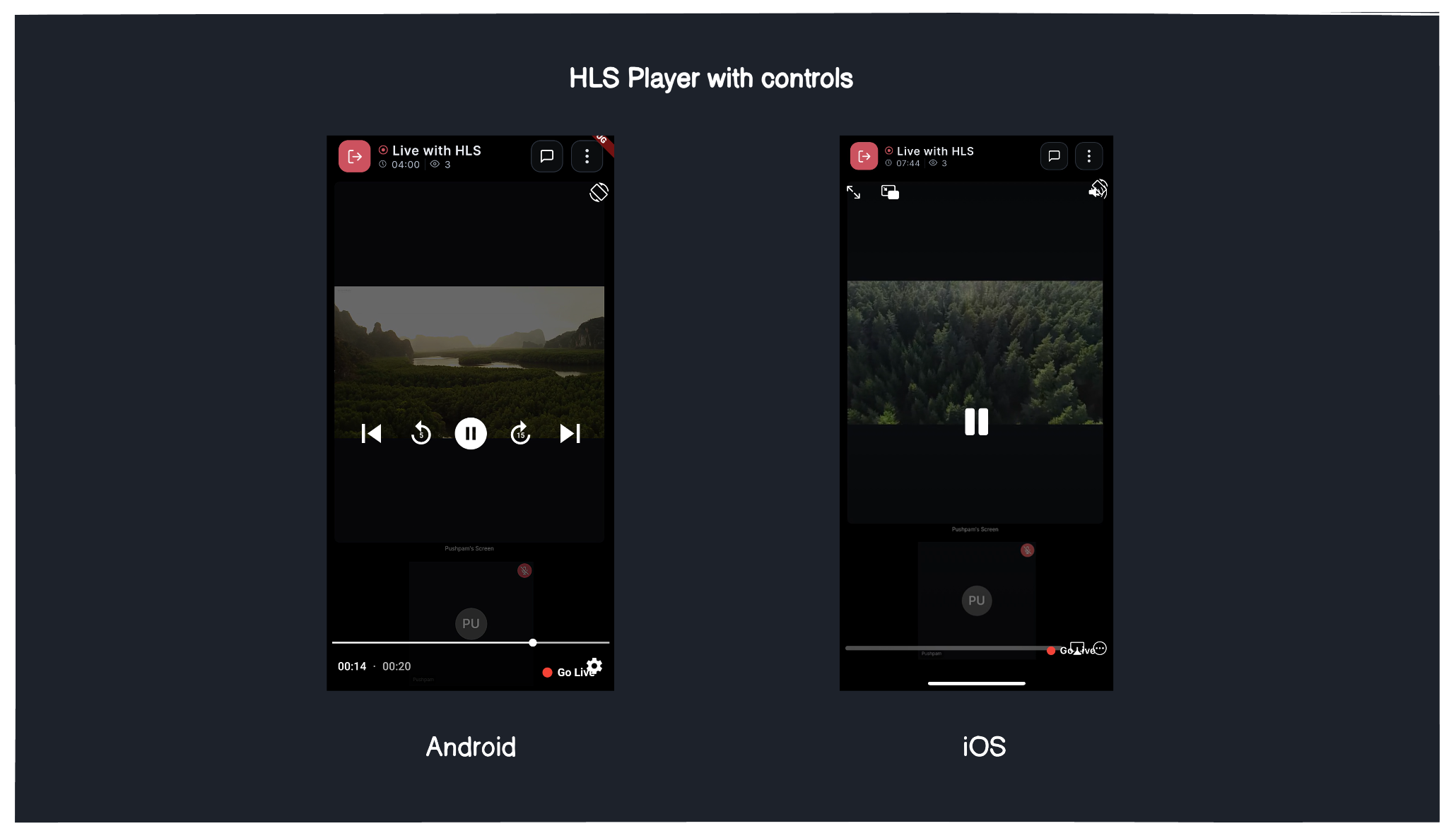

With controls enabled the HLS Player will look like this:

HLS Player controls

HMSSDK exposes HMSHLSPlayerController to control the HLS Player. We can have our own custom UI over HLS Player and use this controller to control the player.

How to start/stop the playback

• Start

To start the HLS Player we can use the start method. This takes an optional hlsUrl String which is HLS m3u8 stream URL.

HMSHLSPlayerController.start();

• Stop

To stop HLS Player we can use the stop method.

HMSHLSPlayerController.stop();

How to Pause and Resume the Playback

• Pause

To pause the HLS stream we can use the pause method

HMSHLSPlayerController.pause();

• Resume

To resume the paused stream we can use the resume method

HMSHLSPlayerController.resume();

How to Seek to Live Position

To seek to the live position we can use the seekToLivePosition method

HMSHLSPlayerController.seekToLivePosition();

How to Seek Forward or Backward

• seekForward

To seek forward we can use the seekForward method

HMSHLSPlayerController.seekForward(seconds:"Time in seconds you wish to seek forward");

• seekBackward

To seek backward we can use the seekBackward method

HMSHLSPlayerController.seekBackward(seconds:"Time in seconds you wish to seek backward");

How to Change Volume of HLS Playback

• setVolume

To set volume for HLS Playback we can use the setVolume method

HMSHLSPlayerController.setVolume(volume:"Volume between 0 to 100");

How to enable/disable captions

• areClosedCaptionsSupported

To check if the HLS stream supports closed captions we can use the areClosedCaptionsSupported method

HMSHLSPlayerController.areClosedCaptionsSupported();

• enableClosedCaptions

If the HLS stream supports closed captions we can enable them using the enableClosedCaptions method

HMSHLSPlayerController.enableClosedCaptions();

• disableClosedCaptions

To disable the closed captions we can use the disableClosedCaptions method

HMSHLSPlayerController.disableClosedCaptions();

Applications can get the captions using the onCues callback in HMSHLSPlaybackEventsListener.

How to get stream properties

• getStreamProperties

To get stream properties like duration, rolling window, etc. we can use the getStreamProperties method

///This returns an object of HLSStreamProperties
///that has properties like duration and rolling window.
HMSHLSPlayerController.getStreamProperties();

How to get HLS Stream layers

• getHLSLayers

To get HLS Stream layers we can use the getHLSLayers method

var layers = await HMSHLSPlayerController.getHLSLayers();

To sort layers in decreasing order based on bitrate we can use the following code:

layers.sort((a, b) => (b.bitrate ?? 0).compareTo(a.bitrate ?? 0));

• setHLSLayer

To set a particular HLS layer we can use the setHLSLayer method

///[hmsHLSLayer] is the layer that you wish to set
HMSHLSPlayerController.setHLSLayer(hmsHLSLayer: hmsHLSLayer);

• getCurrentHLSLayer

To get the current HLS layer we can use the getCurrentHLSLayer method

var layer = await HMSHLSPlayerController.getCurrentHLSLayer();

How to get HLS Callbacks

HMSSDK exposes HMSHLSPlaybackEventsListener to get the callbacks related to HLS Playback.

Let's see how we can use this in our application

class Meeting implements HMSHLSPlaybackEventsListener{}

class Meeting implements HMSHLSPlaybackEventsListener{

    ...

    ///Here we add the HLS Playback event listener
    //Here this is an instance of class that implements HMSHLSPlaybackEventsListener, that is, Meeting
    void addHLSPlaybackEventListener(){
        HMSHLSPlayerController.addHMSHLSPlaybackEventsListener(this);
    }

    ...

}

class Meeting implements HMSHLSPlaybackEventsListener{

  ...

  ///override the methods related to HMSHLSPlaybackEventsListener

  ///Callback to know about any HLS Timed Metadata cue and use it's data to show any UI like quizzes, poll etc. to HLS viewers.
  @override
  void onCue({required HMSHLSCue hlsCue}) {
    ///Handle the hlsCue object as per your UI
  }

  ///Callback to know about the errors that happen during playback.
  @override
  void onPlaybackFailure({required String? error}) {
    /// Handle the error here
  }

  ///Callback to know about the state change event during the playback.
  @override
  void onPlaybackStateChanged({required HMSHLSPlaybackState playbackState}) {
    /// This is used to update the UI based on the playback state like
    /// showing loaders in case of BUFFERING.
  }

  /// These two methods are related to HLS Stats and will only get called if HLS Stats is enabled

  ///Callback to know about failures in HLS Stats.
  @override
  void onHLSError({required HMSException hlsException}) {
    /// Handle the stats error here
  }

  /// Callback to get HLS Player stats
  @override
  void onHLSEventUpdate({required HMSHLSPlayerStats playerStats}) {
    /// Render the HLS Player stats here.
  }

  /// Callback to get the stream height/width changes
  /// - Parameter: size: A [Size] object containing the new height and width of the stream
  void onVideoSizeChanged({required Size size}) {
    /// Use this to set the hls Player aspect ratio
  }

  ///[Android only]
  /// Callback to get the subtitles
  /// - Parameter: subtitles: A list of [String] containing the subtitles
  void onCues({required List<String> subtitles}) {
    ///Set the subtitles here
    ///This is only available for Android for iOS it doesn't do anything since
    ///iOS renders subtitles internally.
  }


  ...

}

class Meeting implements HMSHLSPlaybackEventsListener{

    ...

    ///Here we remove the HLS Playback event listener
    //Here this is an instance of class that implements HMSHLSPlaybackEventsListener, that is, Meeting
    void removeHMSHLSPlaybackEventsListener(){
      HMSHLSPlayerController.removeHMSHLSPlaybackEventsListener(this);
    }

    ...
}

Let us understand the HMSHLSCue class:

class HMSHLSCue {
  // Unique id of the timed event
  final String? id;

  // startDate of the timed event
  final DateTime startDate;

  // endDate of the timed event
  final DateTime? endDate;

  // String payload of the timed event
  final String? payload;
}

• id: Unique String containing the Id of the event

• startDate: DateTime object containing the startDate of the event

• endDate: DateTime object containing the endDate of the event

• payload: String payload received from other peers.

How to Know the Stats Related to HLS Playback

To get the stats for HLS Player HMSHLSPlayerController provides a method to attach and detach the stats listener similar to other listeners like HMSUpdateListener, HMSKeyChangeListener etc.

To enable stats in HLS Player by default, use the isHLSStatsRequired property of HMSHLSPlayer. Let's see how we can enable the stats by default in HLS Player:

Widget HLSPlayer(){
    return HMSHLSPlayer(
        isHLSStatsRequired: true
    );
}

Let's look at the step by step implementation to attach stats listener in HLS Player:

Attach a listener

To start getting HLS Stats we need to call the addHLSStatsListener method

class Meeting implements HMSUpdateListener, HMSActionResultListener,HMSHLSPlaybackEventsListener{

    ...

    ///This method enables the HLS Player Stats
    void enableStats(){
        HMSHLSPlayerController.addHLSStatsListener();
    }

    ...


    ///Implement all the override methods here
}

Listen to onHLSEventUpdate method callback

We get the HLS Stats in onHLSEventUpdate method:

class Meeting implements HMSUpdateListener, HMSActionResultListener,HMSHLSPlaybackEventsListener{

    ...

    ///This method enables the HLS Player Stats
    void enableStats(){
        HMSHLSPlayerController.addHLSStatsListener();
    }

    ...


    @override
    void onHLSEventUpdate({required HMSHLSPlayerStats playerStats}) {
        ///We will get the stats here in playerStats parameter
    }

    @override
    void onHLSError({required HMSException hlsException}) {
      // If there is any failure in HLS Stats we will get the callback here
    }

}

Let us understand the HMSHLSPlayerStats class and it's properties:

class HMSHLSPlayerStats {
  final double bandWidthEstimate;
  final int totalBytesLoaded;
  final double bufferedDuration;
  final double distanceFromLive;
  final double averageBitrate;
  final double videoHeight;
  final double videoWidth;
  final int droppedFrameCount;
}

• bandWidthEstimate: The current bandwidth, as estimated by the player

• totalBytesLoaded: The total bytes downloaded within the given poll duration

• bufferedDuration: An estimate of the total buffered duration from the current position

• distanceFromLive: Distance of current playing position from live edge

• averageBitrate: bitrate of the current layer being played

• videoHeight: The height of the video

• videoWidth: The width of the video

• droppedFrameCount: The number of dropped frames since the last call to this method

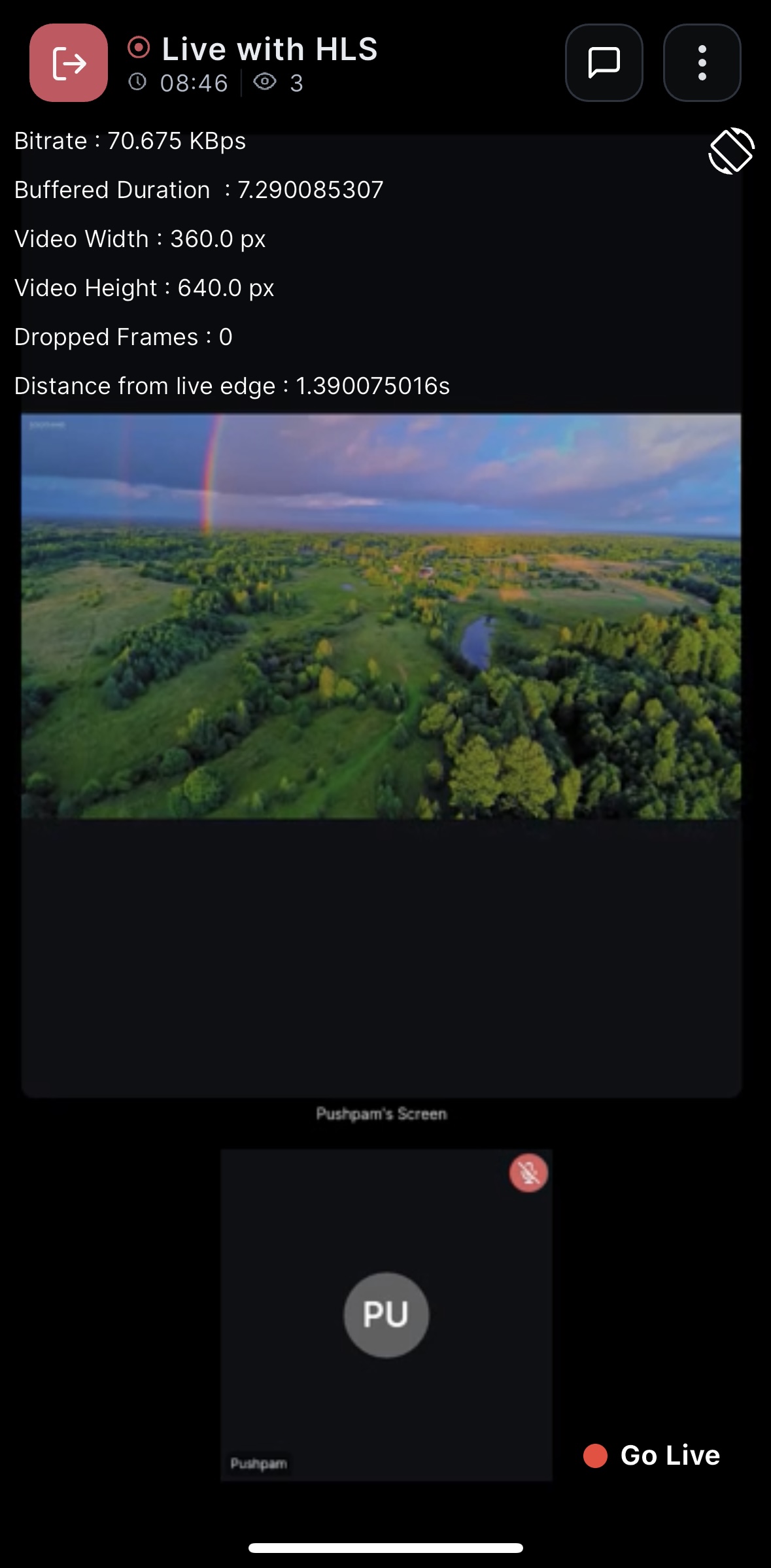

Based on these properties we can render the HLS Player UI as:

Detach a listener

To stop getting HLS Stats we need to call the removeHLSStatsListener method

HMSHLSPlayerController.removeHLSStatsListener();

How to send HLS Timed Metadata

To send HLS Timed Metadata, HMSSDK exposes sendHLSTimedMetadata method which takes in a list of HMSHLSTimedMetadata objects.

Let us first understand the HMSHLSTimedMetadata class:

class HMSHLSTimedMetadata {
  ///metadata contains the message/data which can be sent to a HLS Stream
  final String metadata;

  ///duration is the time interval for which the metadata is valid
  final int duration;
}

• metadata: Metadata is the message or payload that needs to be sent as HLS Stream

• duration: It is the time duration for which the metadata is valid. Duration is 1 second by default.

Now let us see how we can send timed metadata:

class Meeting implements HMSUpdateListener, HMSActionResultListener,HMSHLSPlaybackEventsListener{

    ...

    /// We create a list of metadata to be sent
    List<HMSHLSTimedMetadata> hlsMetadata = [

        /// Metadata for 1 second
        HMSHLSTimedMetadata(
            metadata: "Hey from 100ms for 1 seconds"),

        /// Metadata for 10 seconds
        HMSHLSTimedMetadata(metadata: "Hey from 100ms for 10 seconds",duration: 10)
    ];

    ///Here [hmsSDK] is the HMSSDK instance used to join the room

    /// metadata is a list of HMSHLSTimedMetadata objects
    /// since we can send multiple messages at the same time.
    ///[hmsActionResultListener]: an instance of a class that implements HMSActionResultListener

    ///Here this is an instance of a class that implements HMSActionResultListener, that is, Meeting

    void sendHLSTimedMetadata() {
        hmsSDK.sendHLSTimedMetadata(metadata: hlsMetadata, hmsActionResultListener: this);
    }

    ...
}

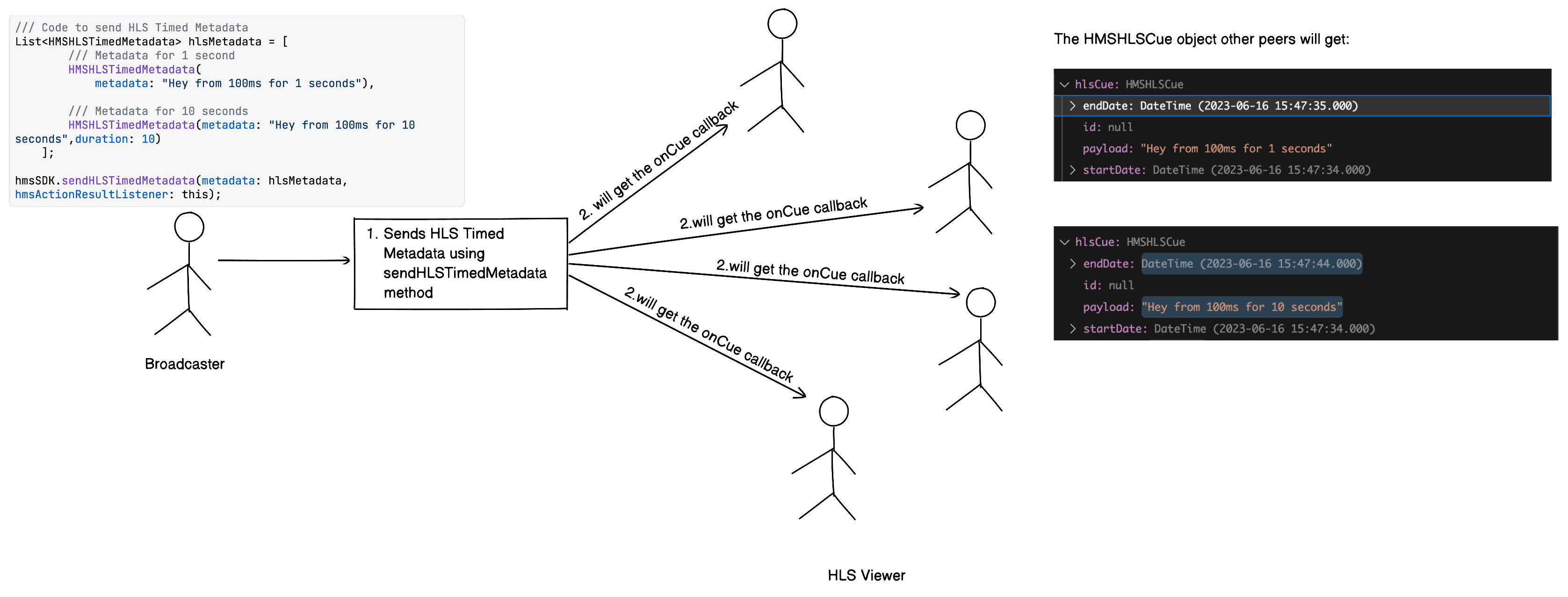

Let's understand the HLS Timed metadata flow with the help of a diagram:

How to Configure HLS Player to Send Analytics Events

There is no configuration required to send the HLS Playback analytics to 100ms dashboard, HMSHLSPlayer sends all the analytics events to 100ms dashboard by default.
